Why Is My Hot Water System Leaking?
Quick Answer:
A hot water system typically leaks from the pressure relief valve, the drain valve, corroded tank fittings, loose connections, or a failed internal anode rod. In most cases, a slow drip indicates a valve issue that can be repaired, while pooling water beneath the unit or rust-coloured discharge suggests the tank itself is failing and needs replacement. Any uncontrolled leak should be investigated immediately to prevent water damage.
Noticing water around your hot water system is one of those sinking moments every homeowner dreads. The good news: not every leak means your system is finished. The bad news: ignored leaks can cause thousands of dollars in water damage — sometimes in a matter of hours.
This guide walks you through every common cause of a leaking hot water system, how serious each one is, what you can do right now, and how to prevent it from happening again.
JUMP TO WHAT YOU NEED
In this guide:
- The most common causes of a leaking hot water system
- How to tell if your system is leaking (even if you can't see water)
- What to do if your hot water system is leaking right now
- How serious is a leaking hot water system?
- How to prevent your hot water system from leaking
- How much does a leaking hot water system cost to fix?
- FAQ
The Most Common Causes of a Leaking Hot Water System
Hot water systems in Australian homes typically leak from one of six locations. Identifying where your leak is coming from is the fastest way to understand how serious the problem is.
1. Pressure Relief Valve (T&P Valve) Leaking
The temperature and pressure relief valve (T&P or TPR valve) is a safety device designed to release water if pressure inside the tank gets too high. A small amount of discharge from this valve during heating is normal. Continuous dripping is not.
WHAT IT LOOKS LIKE:
Water dripping from a pipe on the side or bottom of the unit, usually directed to a drain or outside.
WHY IT HAPPENS:
The valve is doing its job (pressure is genuinely too high), the valve itself has failed and needs replacing, or there is a faulty tempering valve upstream causing pressure fluctuations.
WHAT TO DO:
A constantly discharging T&P valve is a sign of a system fault. Do not cap or block this valve — it exists for safety. Call a licensed plumber.

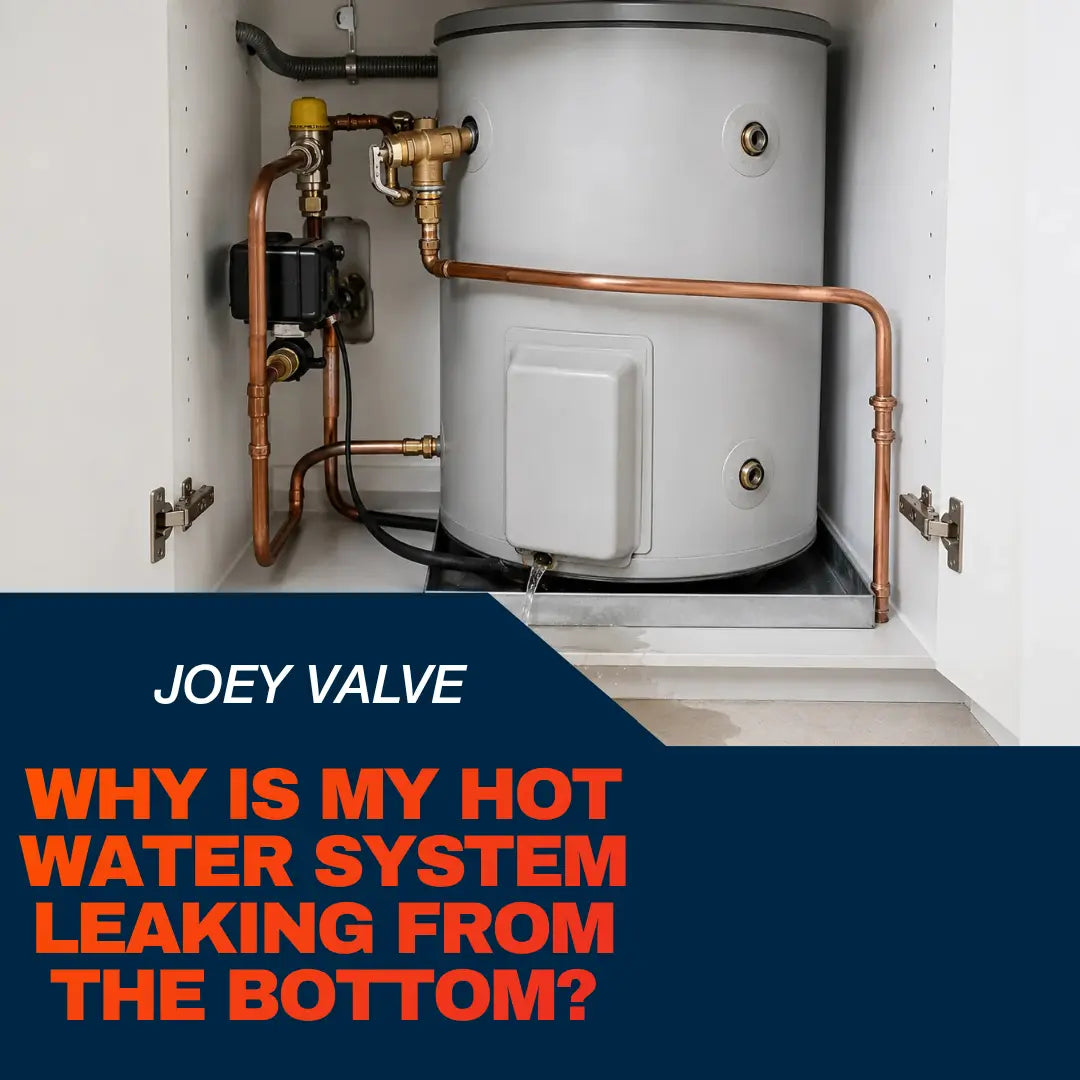

2. Drain Valve Leaking
Located near the bottom of the tank, the drain valve is used during servicing to flush sediment. These valves are frequently made from plastic and become brittle over time.
WHAT IT LOOKS LIKE:
A drip or small puddle directly beneath the lower section of the tank.
WHY IT HAPPENS:
Sediment buildup preventing the valve from fully closing, a worn rubber washer, or a cracked plastic valve body.
WHAT TO DO:
Often a simple repair — replacement drain valves are inexpensive. Left alone, a slow drip can quietly damage flooring Low to and cabinetry for months.
3. Leaking Tank Fittings and Inlet/Outlet Connections
The pipes connecting to the top or side of your hot water system, the cold water inlet and the hot water outlet, are under constant pressure. The fittings where these pipes meet the tank are a common failure point.
WHAT IT LOOKS LIKE:
Moisture or dripping at the top of the unit where pipes connect, or rust staining running down the sides.
WHY IT HAPPENS:
Thread sealant deterioration, loose connections after movement or vibration, or early-stage corrosion.
WHAT TO DO:
Usually a plumber job. Fittings can be replaced but underlying corrosion may indicate the tank is near end of life.
4. Overflow Pipe Leaking
The overflow pipe is part of the pressure management system. Consistent overflow suggests either the T&P valve is faulty or the cold water expansion control valve is not functioning correctly.
WHAT IT LOOKS LIKE:
A steady trickle from the relief valve drain line, the small copper pipe running to a drain or outside, with the discharge point constantly wet, even when the system isn't heating.
WHY IT HAPPENS:
A few litres a day during heating is normal. Continuous flow points to a faulty TPR valve, a failed expansion control valve, or mains pressure above the valve's rating.
WHAT TO DO:
Consistent overflow is wasted water and an indicator of a system fault. A plumber should inspect both valves.
5. Internal Corrosion and Tank Failure
Every hot water storage tank has an anode rod, a sacrificial metal rod that corrodes slowly to protect the tank lining from rust. Once the anode rod is depleted, the tank itself begins to corrode from the inside out.
WHAT IT LOOKS LIKE:
Rust-coloured water from your hot taps, a rotten egg smell, or water pooling beneath the unit with no obvious source.
WHY IT HAPPENS:
Anode rod depletion (typically 5–10 years), water quality issues, or lack of routine maintenance.
WHAT TO DO:
A corroding tank will eventually fail completely. Budget for replacement.
6. Flexi Hose Failure
If your hot water system is connected via flexible braided hoses (flexi hoses), these present their own risk. Flexi hoses have a recommended service life of just 5–10 years, but failures can occur earlier, and when they go, they go fast.
WHAT IT LOOKS LIKE:
A burst or heavily weeping hose connecting the cold water supply to your hot water unit.
WHY IT HAPPENS:
Age, corrosion of the outer braid, or water hammer stress.
WHAT TO DO:
A ruptured flexi hose releases mains-pressure water continuously until someone shuts it off. Burst flexi-hoses cause 1 in 10 home water damage claims in Australia, with an average claim of around $30,000 (Suncorp).
How to Tell If Your Hot Water System Is Leaking (Even If You Can't See Water)
Not all leaks are visible. Watch for these early warning signs:
- Unexplained increase in your water bill
- Warm or damp patches on floors, walls, or ceilings near the unit
- Rust or mineral staining on or around the unit
- Reduced hot water pressure or inconsistent temperature
- Gurgling or popping sounds from inside the tank (sediment buildup)
- The system running more frequently than usual
What to Do If Your Hot Water System Is Leaking Right Now
Follow these steps immediately:
- Turn off the cold water supply to the unit. There should be an isolation valve on the cold water inlet pipe. Turn it clockwise to close.
- Turn off the power. For electric systems, switch off at the circuit breaker. For gas systems, turn the gas valve to the pilot or off position.
- Do not attempt to open pressure relief valves or drain valves if you are not sure what you are doing — they may discharge scalding water.
- Photograph the leak location before cleaning up. This helps your plumber diagnose the fault and may assist with any insurance claim.
- Call a licensed plumber. In most Australian states, any work on hot water systems must be carried out by a licensed plumber.
IMPORTANT!
Never block, cap, or override a pressure relief valve. It is a safety device.
Do not attempt DIY repairs on gas hot water systems, gas work requires a licensed gas fitter.
If water is entering electrical components or pooling near switchboards, call an electrician before a plumber.
How Serious Is a Leaking Hot Water System?
The severity depends entirely on the type and location of the leak:
| Leak Type | Severity | Action Required |
|---|---|---|
| Dripping T&P valve (occasional) | Medium | Monitor; call plumber if continuous |
| Dripping T&P valve (continuous) | High | Call plumber — same day |
| Pooling water beneath unit | High | Turn off supply; call plumber |
| Rust-coloured water from hot taps | Very High | Likely tank failure — replacement |
| Burst flexi hose | Emergency | Turn off supply; call plumber |
| Dripping drain valve | Low-to-Medium | Schedule plumber visit |
How to Prevent Your Hot Water System From Leaking
Most hot water system leaks are preventable with regular maintenance and a couple of smart upgrades.
- Annual maintenance check: Have a licensed plumber inspect anode rods, pressure relief valves, and all connections every 1–2 years.
- Replace flexi hoses proactively: If your hot water system uses flexible braided hoses, replace them by the 10-year mark at the latest — don't wait for failure.
- Install a water leak detector: Battery-powered sensors placed near the unit can alert you to moisture before damage occurs.
- Consider an automatic shut-off valve: Devices like the Joey Valve automatically stop water flow when a leak is detected at the source — protecting your home even when you're asleep or away.
How Much Does a Leaking Hot Water System Cost to Fix?
Repair costs in Australia vary widely depending on the fault:
- T&P valve replacement: $150–$350 including labour.
- Drain valve replacement: $100–$250 including labour.
- Flexi hose replacement: $200–$450 depending on access and number of hoses.
- New hot water system: $900–$3,500+ installed, depending on type (electric, gas, heat pump, solar).
- Water damage repair: $3,000–$30,000+ depending on extent. Insurance excess in Australia typically ranges from $500–$2,500.
The cost of prevention, a plumber visit, new flexi hoses, or an automatic shut-off device — is almost always a fraction of the cost of repairing water damage.
Catch the leak early. Avoid the damage bill.
The Joey Valve shuts off water at your hot water system the moment a leak is detected. No maintenance. Just simple, automatic protection, backed by a 10+ year battery.
Free shipping around Australia or buy instore at a Bunnings Warehouse
Frequently Asked Questions
